BIOFLEX
Bioflex is a smoothbore, highly flexible, PTFE lined hose. Its design overcomes the disadvantages of conventional smoothbore and convoluted PTFE flexible hose designs, dramatically improving on many of their individual technical performance parameters.

Bioflex is a smoothbore, highly flexible, PTFE lined hose. Its design overcomes the disadvantages of conventional smoothbore and convoluted PTFE flexible hose designs, dramatically improving on many of their individual technical performance parameters.

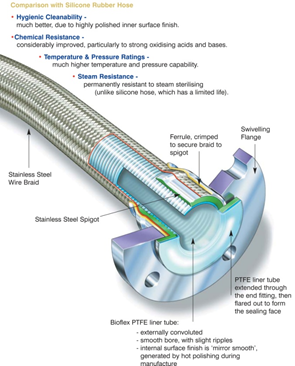

The key feature of Bioflex PTFE hose is the PTFE liner design, which comprises integral rib sections which support the tube against kinking, vacuum and pressure, and highly compressed web sections which give a smoothbore inner surface and excellent flexibility.
Another feature is the integral PTFE lined and flared end fitting design (see next page) which is available for all the standard end fittings on Bioflex Hose Assemblies.
This provides clean, full-bore flow through the end fitting without any entrapment points - unlike conventional fittings, which introduce a bore restriction, also a crevice at the end of the fitting tail.
This PTFE lining also protects the end fitting from any corrosive media passing through the hose bore.
Today, Bioflex has become the established standard in process fluids applications all over the world, and continues to be introduced into new applications every day.

Temperature vs Pressure
Due to its extremely strong construction, Bioflex has outstanding resistance to temperature and pressure, much higher than that of conventional convoluted PTFE lined hose.

Temperature vs Vacuum
All sizes of Bioflex GP,SS and AS, SS are usable at full vacuum up to 130°C. Above this, the vacuum resistance should be reduced 1% for every degree above 130°C. Rubber covered grades the same, BUT ONLY within the temperature limits for the type of rubber.
Temperature & MWP Graph for Bioflex GP, SS and AS, SS (Subtracted to calculate Pressure Drop over the Hose Length)

Maximum Working Pressure (MWP) Variation with Temperature:
Hose with SS Braid as per Graph.
Hose with PB Braid, pressure as listed (Page 10) from -30°C to +80°C and 50% less from 80°C to 100°C.
Hose with RC, FP and SI grades as per Graph, BUT only within the temperature range for the particular grade of rubber cover, as given below.

Design & Approvals
Bioflex GP is a virgin PTFE liner, manufactured from hose grade PTFE which conforms to the requirements of:
FDA 21 CFR 177.1550
Bioflex GP hose liner tube has also been tested, and complieswith:
USP Class 6 :
- Systemic Injection Test
- Intracutaneous Test
- Intramuscular Test
- USP L929 MEM Elution Test (Cytotoxicity)

Maximum Operating Temperatures (Internal Fluid Only):
SS -70°C to +260°C
PB -30°C to +100°C
SS,RC & SS, FP -40°C to +140°C
SS, SI -40°C to +180°C
KYB -40°C to +120°C



Tube
GP – SS 316 AS - Antistatic
Braids
SS PB - Polypropylene
KYB - Kynar TO - Tube
HB - Hastelloy
Rubber Cover on Braid
RC – Rubber
Cover
SI - Silicone
FP - Fireproof RC-300 - Rubber Covered 300mm at End
Protection
PC - Protection Coil SR - Scuff Rings
KR - Kink Resistant
Fittings
PN6, PN10, ASA 150lbs
DIN 11851 male DIN 11851  female
KAMLOK adapter KAMLOK coupler
Triclover not PTFE lined Triclover PTFE lined
SMS RJT

BIOFLEX Size Range and Specefications
Number
ID
Actual
Bore Size
O/D of
Tube
Braid type
O/D of Braid
or Rubber
R min
WP
BP
Max hose
 Length
Weight
mm
inch
mm
mm
mm
mm
bar
bar
m
Kg
BIOF-0A-010
10
3/8”
9,5
11,96
TO
-
35
5
20
20
.06
BIOF-0B-010
SS
12.83
20
80
320
20
.14
BIOF-0D-010
RC
17.40
18
80
320
18
.22
BIOF-0A-015
15
½
12.7
15.49
TO
-
60
5
20
20
.15
BIOF-0B-015
SS
16.6
38
70
280
20
.29
BIOF-0C-015
PB
19.5
38
35
140
20
.22
BIOF-0D-015
SS,RC/FP
21.0
60
70
280
18
.39
BIOF-0E-015
SI
21.0
60
70
280
18
.39
BIOF-0F-015
KYB
17.5
60
10
40
20
.19
BIOF-0A-016
16
5/8
16,0
19.40
TO
20.6
68
5
20
20
.17
BIOF-0B-016
SS
23.3
45
65
260
20
.35
BIOF-0C-016
PB
25.0
45
33
130
20
.25
BIOF-0D-016
SS,RC/FP
25.0
68
65
260
18
.47
BIOF-0E-016
SI
21.5
68
65
260
18
.47
BIOF-0F-016
KYB
20.6
68
10
40
20
.20
BIOF-0A-020
20
¾
19,0
23,20
TO
24.5
75
5
20
20
.20
BIOF-0B-020
SS
27.9
50
60
240
20
.40
BIOF-0C-020
PB
30.4
50
30
120
20
.28
BIOF-0D-020
SS,RC/FP
30.4
75
60
240
18
.55
BIOF-0E-020
SI
26.0
75
60
240
18
.55
BIOF-0F-020
KYB
24.5
75
10
40
20
.24
BIOF-0A-022
22
7/8
22,0
22,70
TO
-
92.5
4
16
20
.28
BIOF-0B-022
SS
28.2
60
55
220
20
.52
BIOF-0C-022
PB
32.0
60
27.5
110
20
.38
BIOF-0D-022
SS,RC/FP
33.2
92.5
55
220
18
.74
BIOF-0E-022
SI
33.2
92.5
55
220
18
.74
BIOF-0F-022
KYB
29.7
92.5
10
40
20
.33
BIOF-0A-025
25
1
25,4
31,00
TO
-
110
4
16
20
.36
BIOF-0B-025
SS
32.3
70
50
200
20
.63
BIOF-0C-025
PB
37.7
70
25
100
20
.47
BIOF-0D-025
SS,RC/FP
37.3
110
50
200
18
.92
BIOF-0E-025
SI
37.3
110
50
200
18
.92
BIOF-0F-025
KYB
33.4
110
10
30
20
.41
BIOF-0A-032
32
1 ¼
32,0
37,3
TO
-
140
3
12
20
.45
BIOF-0B-032
SS
39.5
100
45
180
20
.85
BIOF-0C-032
PB
44.3
100
23
90
20
.72
BIOF-0D-032
SS,RC/FP
44.5
140
45
180
18
1.15
BIOF-0E-032
SI
44.5
140
45
180
18
1.15
BIOF-0F-032
KYB
39.7
140
6
24
20
.53
BIOF-0A-035
35
1 3/8
34,9
41,20
TO
-
160
2
8
18
.54
BIOF-0B-035
SS
43.1
120
40
160
18
1.00
BIOF-0C-035
PB
47.8
120
20
80
18
.86
BIOF-0D-035
SS,RC/FP
48.1
160
40
160
16
1.38
BIOF-0E-035
SI
48.1
160
40
160
16
1.38
BIOF-0F-035
KYB
42.9
160
6
20
18
.68
BIOF-0A-040
40
1 ½
38,0
45,00
TO
-
180
2
8
17
.66
BIOF-0B-040
SS
47.0
140
40
160
17
1.10
BIOF-0C-040
PB
50.8
140
20
80
17
.90
BIOF-0D-040
SS,RC/FP
52.0
180
40
160
15
1.55
BIOF-0E-040
SI
52.0
180
40
160
15
1.55
BIOF-0F-040
KYB
47.7
180
6
20
17
.78
BIOF-0A-048
48
17/8
47.6
55.20
TO
-
280
2
8
13
.82
BIOF-0B-048
SS
57.1
190
35
140
13
1.38
BIOF-0C-048
PB
62.0
190
18
72
13
1.12
BIOF-0D-048
SS,RC/FP
62.1
280
35
140
11
1.94
BIOF-0E-048
SI
62.1
280
35
140
11
1.94
BIOF-0F-048
KYB
57.3
280
6
16
13
.97
BIOF-0A-050
50
2
50,8
59,10
TO
-
300
2
8
10
1.25
BIOF-0B-050
SS
61.0
200
30
120
10
1.90
BIOF-0C-050
PB
66.0
200
15
60
10
1.60
BIOF-0D-050
SS,RC/FP
66.0
300
30
120
88
2.56
BIOF-0E-050
SI
66.0
300
30
120
10
2.56
BIOF-0F-050
KYB
61.7
300
6
12
10
1.42
